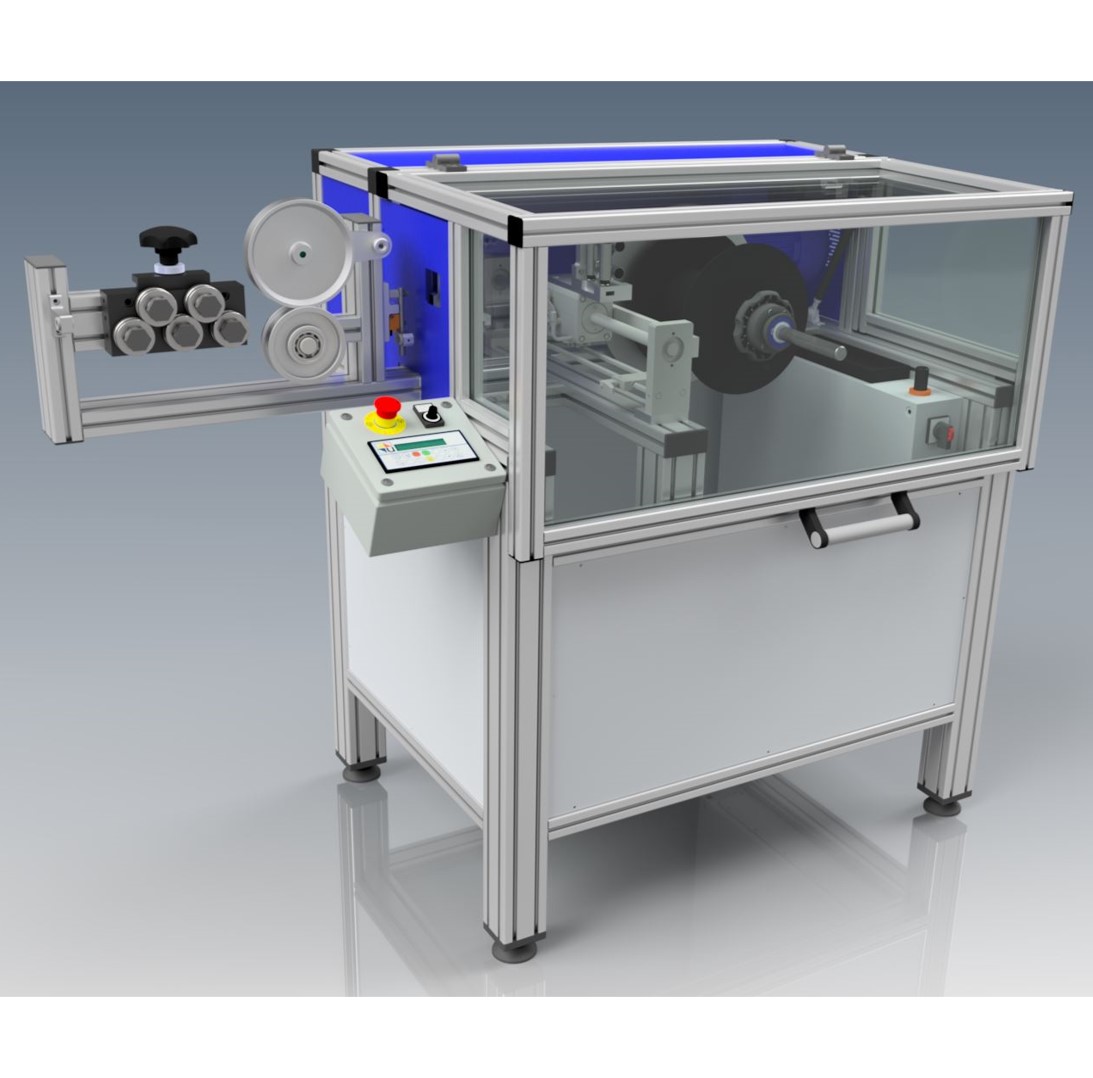

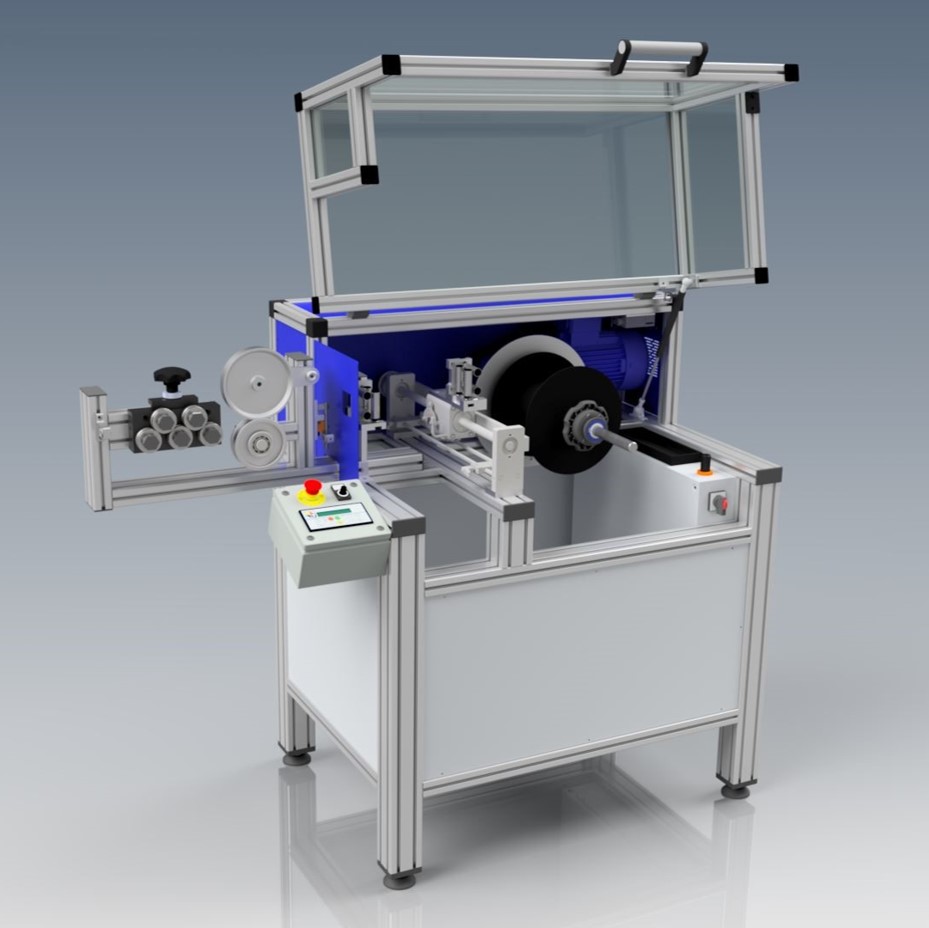

With the KUG300 various materials, e.g. cables or hoses, up to a diameter of 10 mm, can be quickly and easily wound onto different spools. A quick-action clamping system with cones allows the spools to be changed quickly, even with different core bores and dimensions. The machine is controlled by an easy-to-use PLC, whereby the mechanical laying is set manually. With a core diameter of 100 mm, the maximum winding speed is 110 m / min.
| Main drive: | AC-Motor With frequency converter |
| Max. Speed: | 350 rpm |
| max. spool dimensions: |
Width: 300 mm Diameter: 300 mm |
| Max. material diameter: | 10 mm |
| Operation: | Keypad |
| Display: | Multi language |
| Operating hours counter: | included |
| Stop material end: | included |
| Resolution length input: | 0,1 m |
| Max. length input:: | 500 m |
| Length: | 1500 mm |
| Depth: | 830 mm |
| Height: | 1250 mm |
| Electrical connectin: | 3 x 400 V / 50 – 60 Hz |
